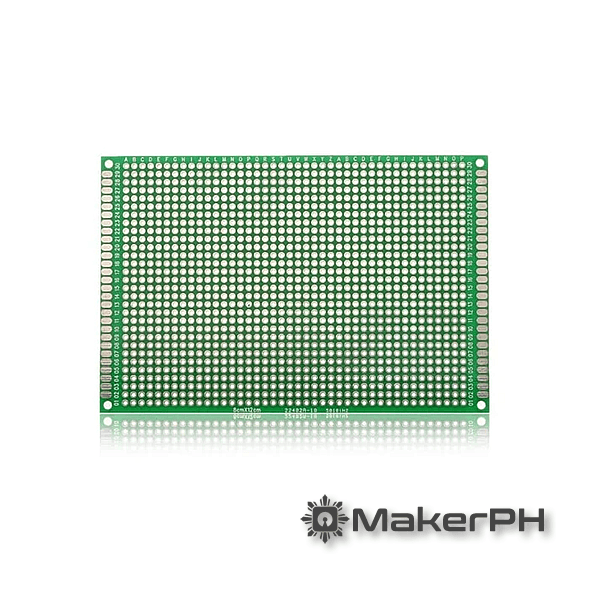

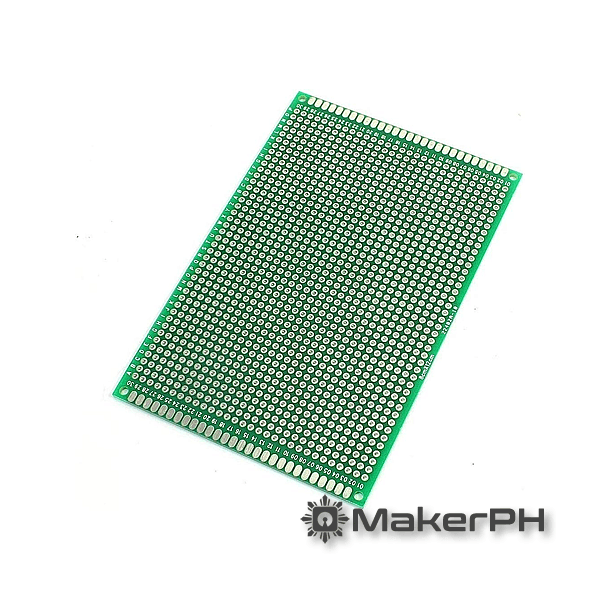

8x12cm Double Side Prototype Universal PCB

Introducing the FR4 Protoboard Double-Sided Universal PCB, a versatile and high-quality prototyping board for designing and testing electronic circuits. This double-sided PCB offers ample space and flexibility with its compact size of 8×12 cm. Whether you’re a hobbyist, student, or professional, the FR4 Protoboard is designed to meet your prototyping needs with ease.

Universal PCB Key Features

  • Double-Sided Design: The PCB features a double-sided layout, allowing for increased flexibility in circuit design and component placement. Both sides are fully solderable, making it convenient to create complex circuitry.
  • Universal PCB Pattern: The board is designed with a universal pattern of through-hole pads arranged in a grid formation. This layout ensures compatibility with a wide range of electronic components, making it suitable for diverse circuit designs.
  • High-Quality FR4 Material: Constructed from high-quality FR4 fiberglass material, this protoboard offers excellent electrical insulation and durability. It provides reliable performance and long-lasting use, even in demanding applications.
  • Compact Size: With dimensions of 8×12 cm (80×120 mm), the protoboard strikes a balance between providing ample space for components and keeping your designs compact. It fits seamlessly into various projects without compromising functionality.
  • User-Friendly Design: The protoboard features clearly labeled through-hole pads and soldering points, ensuring ease of use, particularly for beginners. The standardized layout simplifies the prototyping process and minimizes the chances of errors.
  • Versatile Applications: From simple circuits to microcontroller experiments and complex electronic systems, this universal PCB caters to a wide range of applications. It is suitable for hobby projects, educational purposes, and professional prototyping.

Specifications

  • Material: FR4 fiberglass
  • Size: 8×12 cm (80×120 mm)
  • Hole Quantity:
  • Layout: Double-sided universal pattern
  • Hole Diameter: Standard 1 mm
  • Hole Pitch: 2.54 mm (0.1 inches)
  • Thickness: 1.6 mm
  • Copper Thickness: 1 oz (35 µm) on each side\
  • Solder Mask: Green on both sides
  • RoHS Compliant: Yes

Package Contents:

1x FR4 Protoboard Double-Sided Universal PCB (8×12 cm)
