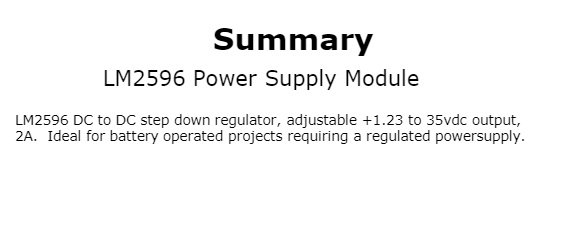

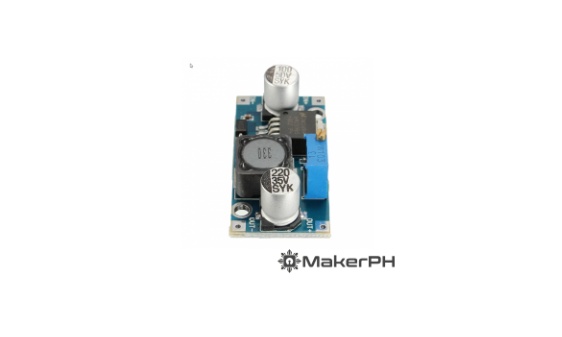

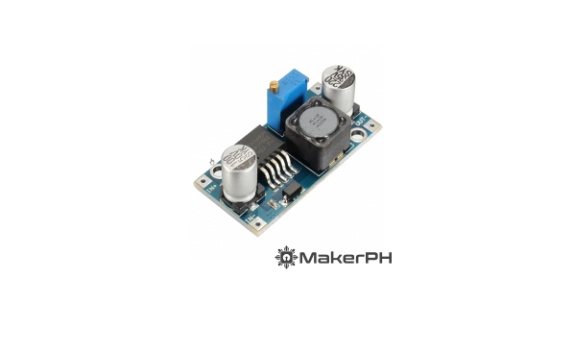

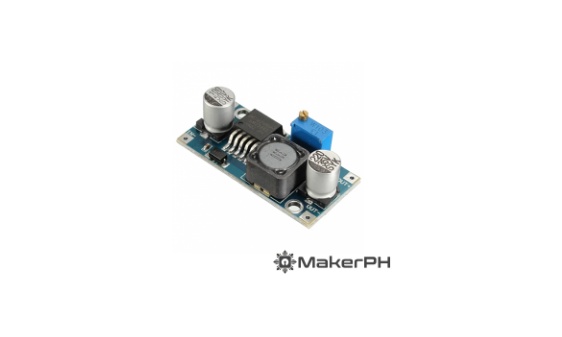

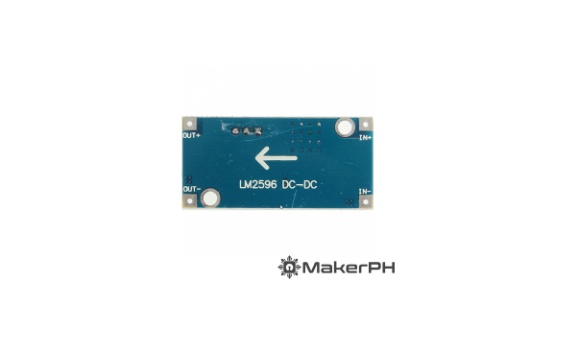

LM2596 DC to DC Step Down Regulator, Adjustable + 1.23 to 35V DC output 2A. Ideal for battery operated projects requiring a regulated power supply.

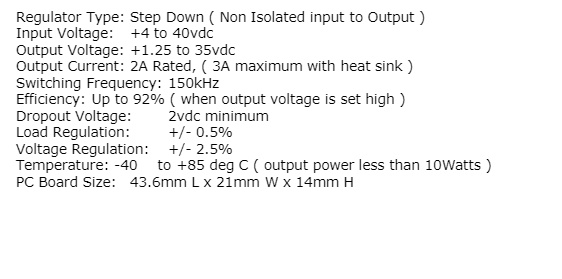

Regulator Type: Step Down (non Isolated input to output)
Input Voltage: +4 to 40 VDC
Input Voltage: +4 to 40 VDC
Output Voltage: 1.25 to 35 VDC
Output Current: 2A Rated (3A Maximum with heatsink)
Switching Frequency: 150 kHz
Switching Frequency: 150 kHz
Efficiency: Upto 92% (when output voltage is high)
Dropout Voltage: 2VDC Min
Load Regulation: +/- 0.5%
Dropout Voltage: 2VDC Min
Load Regulation: +/- 0.5%
Voltage Regulation: +/- 2.5%
Temperature: -40 to 85 Celsius (output power is less than 10W)
PC Board Size: 43.6mm L x 21mm 14mm H
Temperature: -40 to 85 Celsius (output power is less than 10W)
PC Board Size: 43.6mm L x 21mm 14mm H
