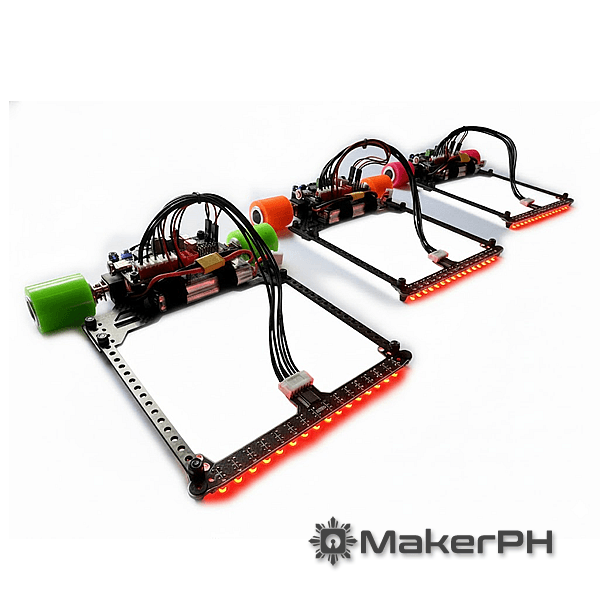

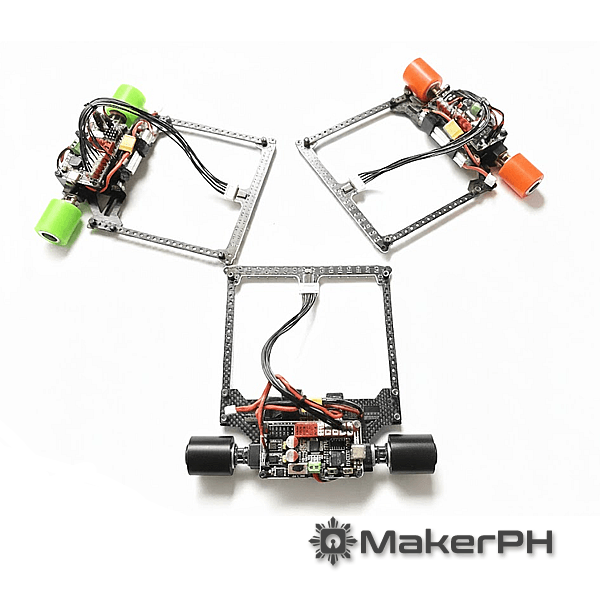

The MPH ALF-16X Carbon is an elite line follower robot designed for speed, stability, and precision. Featuring a CNC-machined carbon fiber chassis, specially ordered 2000RPM motors with specified specs, a 16-channel sensor array, CNC aluminum wheels, and high-grip 26x33mm silicone tires, this robot offers exceptional performance.
Equipped with a 2S 7.4V 530mAh battery, black ABS plastic motor mounts, and bundled with a charger and Pelican-type case for safe transport, the MPH ALF-16x Carbon is designed for enthusiasts who demand both performance and protection.
🏆 Building on its elite technical specifications and premium components, the MPH ALF-16X Carbon has not only met but consistently exceeded expectations in competitive arenas, securing numerous top placements in line follower competitions both locally and on the international stage, establishing it as a proven, championship-winning platform for serious robotics enthusiasts.
MPH ALF-16X Premium Features
- CNC-Cut Carbon Fiber Chassis
Built for precision — lightweight and extremely durable. Matte black finish for a professional, race-ready look. - Custom Wound 2000RPM Motors
These motors are specially ordered from the factory with precisely specified specs for optimal torque and speed, designed specifically for line-following robots. - CNC Aluminum Wheels
Designed for smooth, responsive performance on high-speed tracks. Precision-machined for durability. - High-Grip Premium Silicone Tires (26mm x 33mm)
Providing excellent traction and stability, these tires are engineered for maximum control during tight corners. - ABS Plastic Motor Mounts
Impact-resistant and designed for a secure, stable motor fit. Black finish enhances the stealthy look. - Stainless Steel Hardwares
Flat head screws with anti-loose self-locking nuts — premium hardware designed to minimize vibration and ensure long-term reliability. - 16-Channel IR Sensor Panel
– Ultra-responsive and precise
– Adjustable sensitivity for various surfaces and lighting
– Ideal for tight corners, splits, and intersections - Advance Robot Controller Board
– Dual H-Bridge Motor Drivers
– 6x Servo Ports
– Built-in power switch, buzzer, and voltage regulation
– USB Type-C programming (Arduino IDE compatible) - Magnetic USB-C Cable
Fast uploads and secure connection — no more worries about port wear. - 2S 7.4V 530mAh LiPo Battery
Compact and efficient — delivers just the right power for optimal performance while keeping weight low. - Battery Charger
Includes a high-quality charger for safe and efficient battery charging. - Pelican-Type Case

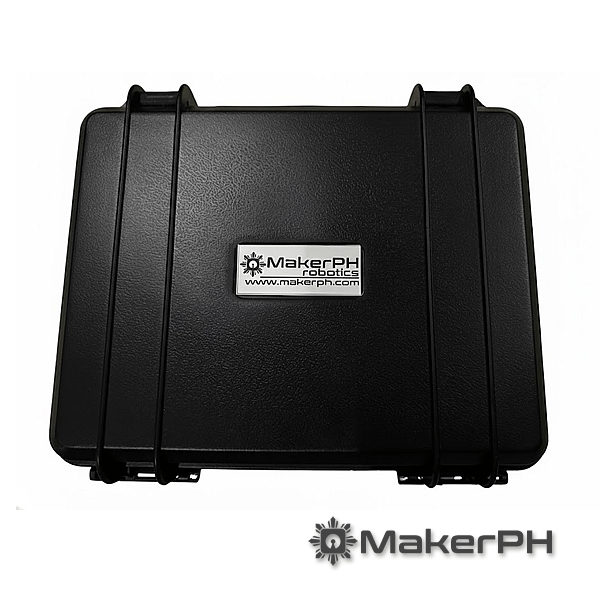

Protect your robot during transport with the Pelican-type case — rugged and durable, ensuring your MPH ALF-16x Carbon remains safe during travel and storage.
MPH ALF-16X Technical Specifications
- Chassis CNC Carbon Fiber, Matte Black
- Advance Robot Controller
- 16-Channel IR Sensor Panel
- Custom Gear Motors 2000RPM DC Motors (x2)
- Motor Mounts ABS Plastic, Black, Precision Fit
- Wheels CNC Aluminum Rims
- Premium High-Grip Silicone (26mm x 33mm)
- USB Interface Magnetic USB Type-C
- Fasteners Black Stainless Steel, Flat Head, Self-Locking screw
- Power Input 2S 7.4V 530mAh LiPo Battery
- Charger Compatible with 2S LiPo Battery
- Pelican-Type Case Durable, Rugged Protection for Transport
- Programming Arduino IDE Compatible
- Dimensions ~175mm x 175mm
What’s Included
- MPH ALF-16X Carbon Edition Robot (fully assembled)
– 1x CNC Carbon Fiber Chassis
– 2x CNC Carbon Fiber Rod
– 2x CNC Aluminum Wheels + Silicone Tires (26mm x 33mm)
– 1x 16-Channel IR Sensor Panel
– 1x Advance Line follower Robot Controller Board
– 1x Magnetic USB Type-C Cable
– 1x 2S 7.4V 530mAh LiPo Battery
– 1x Charger (compatible with 2S LiPo battery)
– 1x Pelican-Type Case
– 1x Combination Padlock
This robot is a true game-changer in the world of competitive line-following, moving beyond typical amateur kits to deliver professional-grade performance. The lightweight yet rigid carbon fiber chassis allows the MPH-ALF-16X to maintain jaw-dropping speeds while its advanced 16-sensor array ensures the robot never loses the line, even on the tightest turns and fastest track segments virtually eliminating the oscillation and drift common in cheaper models. While the price point reflects its elite build quality and speed, the MPH-ALF-16X Carbon is undoubtedly the investment required for anyone serious about winning.
