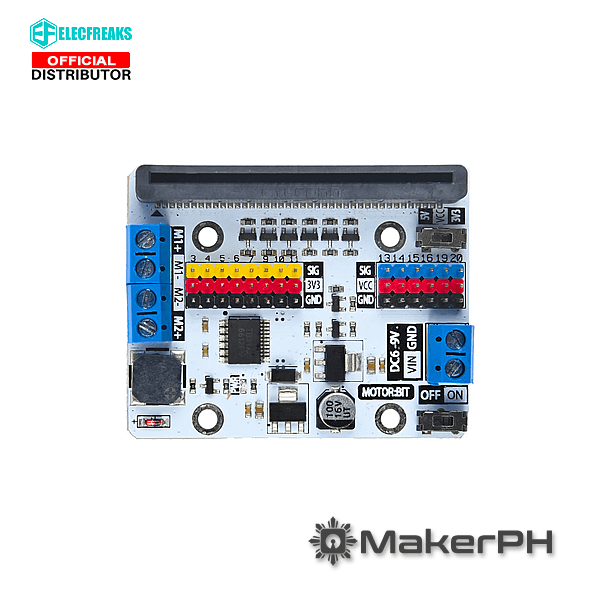

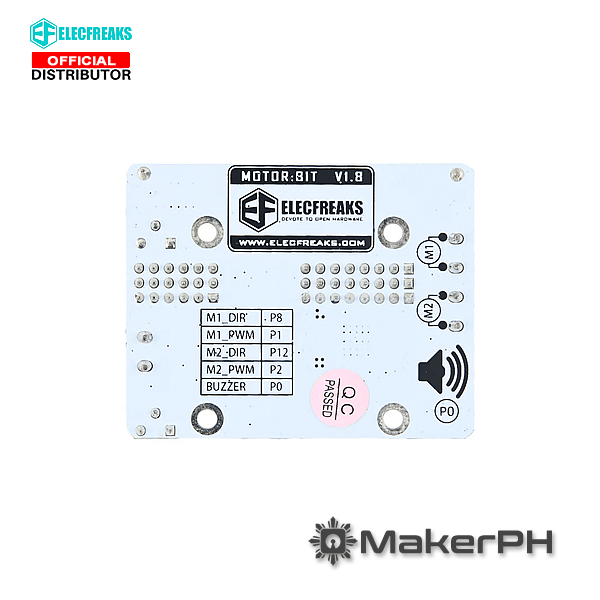

Motor:bit is a motor driving board based on micro:bit. It has integrated a TB6612 motor driving chip, which is used to drive two motors with a maximum 1.2A DC single channel current. It has also integrated 12 GVS ports(for connecting OCTOPUS series of electric bricks) and 1 IIC communication port. These ports allow you to extend with various sensors and electric modules. On the board, P3-P7, and P9-P10 are IO ports for directly driving 3.3V devices; P13-P16, and P19-P20(IIC port) support 3.3V/5V voltage switch. Sliding the voltage switch onboard, it is available to drive 3.3V or 5V devices. Besides, you can play music with the buzzer on motor:bit. Motor:bit is totally designed for DIYers. You can use it to create your own smart car or more funny projects.

Motor:bit Breakout Board Technical Highlights & Features

• Motor Driver Chip (TB6612) supports two channels with up to 1.2 A per motor for robust performance.
• Offers 12 GVS connector ports for seamless attachment of Octopus series modules, plus an I²C port for advanced expandability.

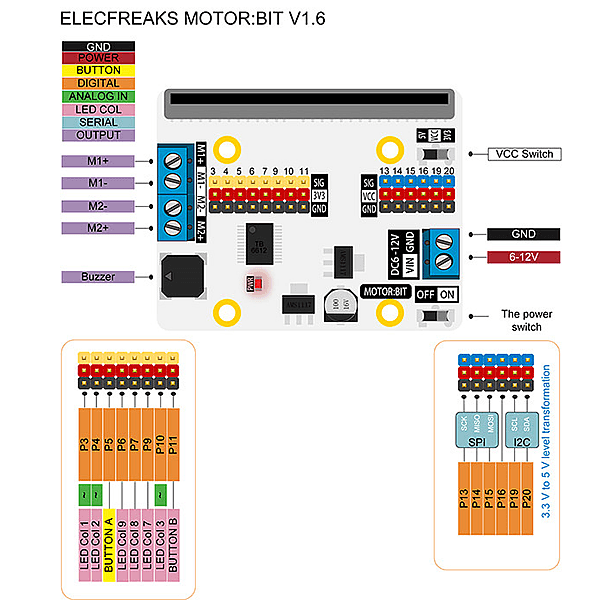

• Equipped with a 3.3 V / 5 V voltage switch on ports (P13–P16, P19–P20), enabling compatibility with a broad range of sensors and devices.
• Built-in buzzer support on board allows quick feedback or sound alerts.
• Powered via a standard 6–12 V DC input, with easy integration into smart car chassis and robotics setups.

Motor:bit Breakout Board Specifications

• Version: V1.6
• DC Power Voltage: 6-12V
• Motor Channel: 2
• Max Current per Channel: 1.2A
• Extendable Digital IO Port: 12
• Extendable Analog IO Port: 3
• I2C Connector: Yes
• Passive Buzzer: Yes
