ELEFREAKS Octopus 1 Channel Relay

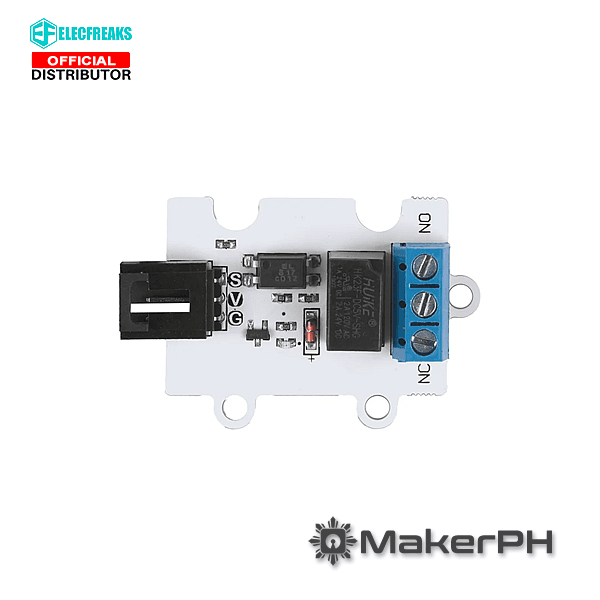

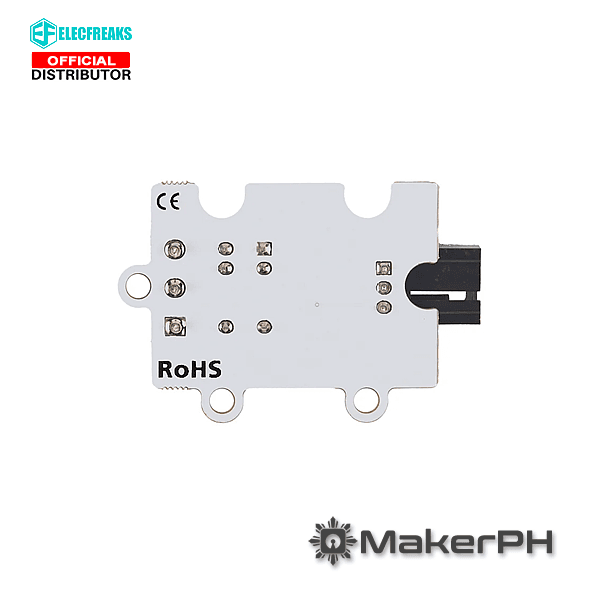

OCTOPUS 1Channel Relay is a single relay electronic brick

Octopus 1Channel Relay Features

• Relay Power Supply Voltage:< 5V
• Relay drive level: With optoisolator circuit, can completely isolate the relay controlling signal and the controlled signal, secure and dependable
• Contactor control
• Indicator
• Drive circuit: Transistor drive circuit, controlling pin high impedance and requiring very small drive current, about 5mA
• Pulldown relay controlling signal to prevent false triggering Using high-current relay, DC 24V 2A, AC 120V 2A
• PCB positioning holes: 3mm standard positioning holes, can install 3mm standard studs, screws

Note

• Module 5V power supply
• Never use a power supply of more than 5V, which may cause damage to the module.

Applications

• Smart home
• Industrial control
• Equipment remodel
• Motor Control

Package List

• 1x OCTOPUS 1Channel Relay
• 1x Analog Sensor Cable
