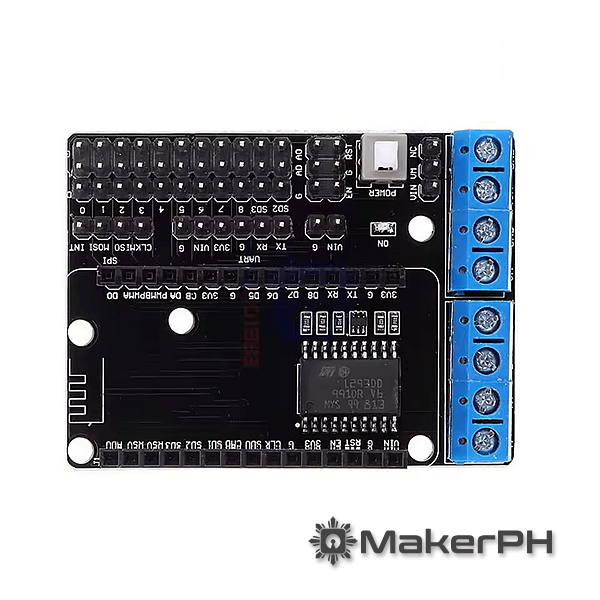

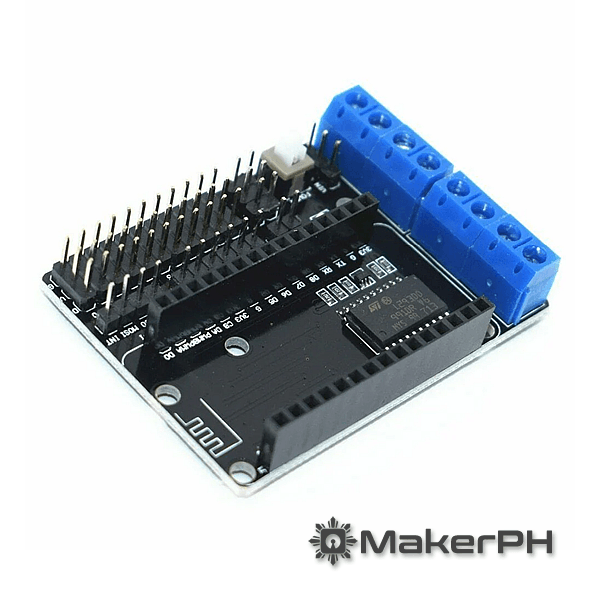

L293D Motor Driver Shield for NodeMCU ESP12E

L293D Motor Driver Shield for NodeMCU ESP12E

The L293D Motor Driver Shield for NodeMCU ESP12E is a plug-and-play shield designed to control two DC motors using the popular ESP8266-based NodeMCU board. It uses the L293D H-Bridge driver IC to provide bidirectional control of two motors with speed and direction.

This shield is ideal for building Wi-Fi controlled RC cars, smart robotics, and IoT motor-driven projects using your NodeMCU ESP12E.

L293D Motor Driver Shield Key Features

• Dual H-Bridge motor control (L293D)
• Controls 2 DC motors (direction and speed)
• PWM support via NodeMCU
• Stackable design, easy installation
• Power selector: VM (external motor supply) or VIN (NodeMCU supply)
• Compatible with ESP12E NodeMCU (ESP8266)

L293D Motor Driver Shield Technical Specifications

• Motor Voltage (VM): 4.5V – 36V
• Logic Voltage (VIN): 4.5V – 9V
• Max Motor Current: 600mA continuous per channel
• Driver IC: L293D
• Motor Ports: 2 (DC Motors or 1 Stepper Motor)
• Form Factor: Compatible with NodeMCU ESP12E layout

Applications

• Wi-Fi controlled robotic vehicles
• Smart RC car projects
• Home automation with motor control
• Educational IoT and robotics kits
• Prototype platforms for automation

What’s in the Box

1x L293D Motor Driver Shield for NodeMCU ESP12E
