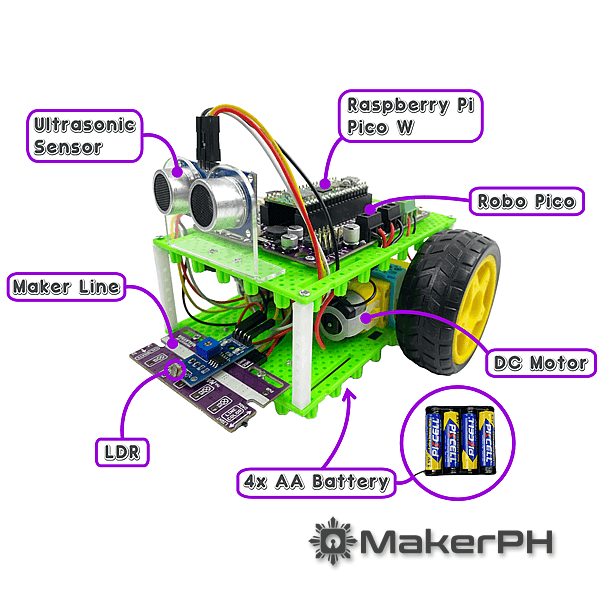

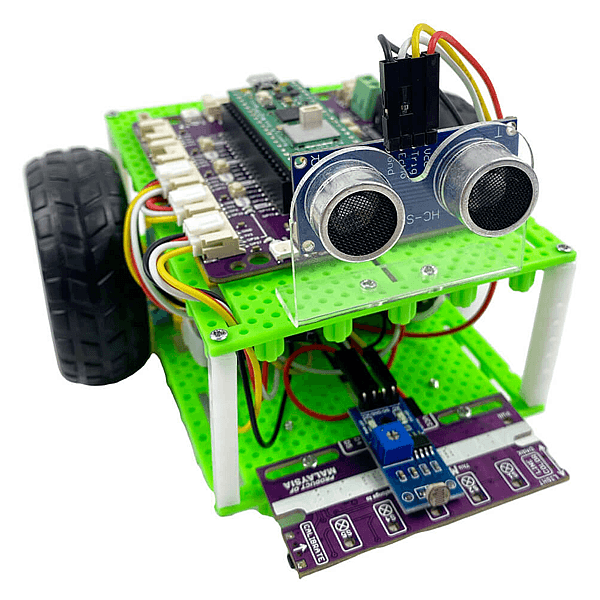

BocoBot – Robotics Kit for Raspberry Pi Pico/Pico W

BocoBot Robotic Kits for Raspberry Pi Pico/Pico W – 5-in-1 Fun and Learning

Discover the exciting world of robotics with the BocoBot, a versatile and educational 5-in-1 robotic kit that lets you dive into electronics, microcontrollers, sensors, motors, and coding. Powered by the Raspberry Pi Pico or Pico W, this kit makes learning fun and engaging while offering wireless control through your smartphone via WiFi. Whether you’re a complete beginner or an experienced hobbyist, BocoBot has everything you need to bring your robot to life!

Inspired by the Robo Pico Expansion Board
The name “BocoBot” is a playful combination of “roBO piCO roBOT,” inspired by the Robo Pico expansion board. This platform simplifies the process of building and programming robots with Raspberry Pi, helping users of all skill levels explore robotics with ease.

Perfect for Raspberry Pi & Robotics Beginners

If you’re new to Raspberry Pi or robotics, don’t worry! BocoBot is designed with simplicity in mind. The kit includes a Robo Pico expansion board from Cytron, equipped with essential components like a motor driver, Grove connectors, RGB LED, buzzer, and push button. Plus, it comes with detailed installation steps and example codes for five different projects, providing complete guidance to get you started. Experiment with the provided code and watch how BocoBot responds to your commands in real time!

No Soldering, No Breadboards – Just Plug and Play!

Tired of troubleshooting breadboards and misplaced jumper wires? BocoBot takes the hassle out of building robots by using Grove connectors for simple, error-free connections to various sensors and components. This user-friendly approach makes it perfect for beginners who want to focus on building and programming without worrying about intricate wiring.

Customizable Robotic Case for Creative Freedom

The BocoBot comes with a newly designed robotic case that offers numerous holes for screws and wires, giving users the freedom to customize their robot’s layout. Rearrange components, add extra sensors, and explore new designs! The lightweight yet durable case ensures long-lasting performance, making it a great option for classroom projects, workshops, or personal tinkering.

5 Projects in One Robot

Basic Movement

Obstacle Avoidance

Light Searching

Line Following

Remote Control using WiFi

Features:

• Based on Raspberry Pi Pico W and Robo Pico expansion board
• Suitable for makers, hobbyists, secondary and tertiary level of education, who want to start learning Raspberry Pi and robotics
• 5-in-1 Robot:
  • Basic Movement
  • Obstacle Avoidance
  • Light Searching
  • Line Following
  • WiFi Controlled
• Complete guidance provided, covering installation setup and example codes for each project
• Durable and lightweight plastic chassis
• Robo Pico offers additional features for implementing other custom projects

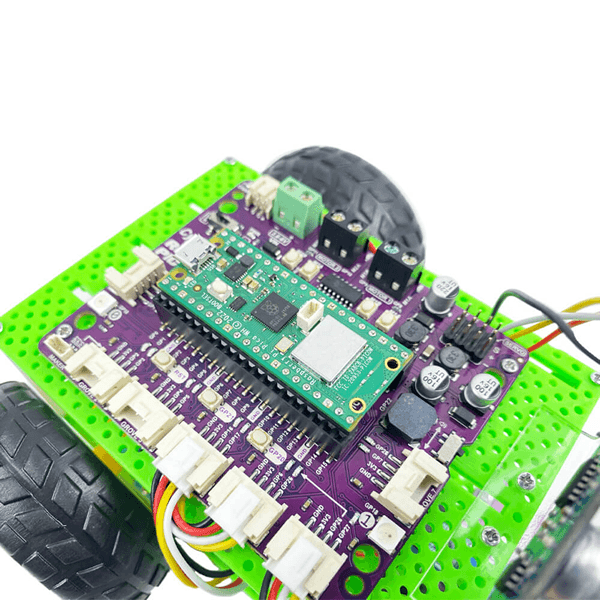

Robo Pico Specifications:

• Compatible with Raspberry Pi Pico and Raspberry Pi Pico W
• Versatile power circuit
  • Automatic power selection: USB 5V, LiPo (1-cell) or Vin (3.6-6V)
  • Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection)
  • Power on/off switch with status LED
• GPIO Breakout for Raspberry Pi Pico/Pico W
• 1 x Reset Button
• 7 x Grove Ports (flexible I/O options: digital, analog, I2C, SPI, UART)
• 1 x Maker Port (JST-SH 4-Ways Connector)
• 13 x Status indicator LEDs for GPIO pins
• 2 x RGB LED
• 2 x Programmable Button
• 1 x Piezo Buzzer with Buzzer Mute Switch
• 2 x DC Motor Terminals
  • 2 x Motor Status LEDs for each Motor Terminal
  • 2 x Motor Test Buttons for each Motor Terminal
• Mounting holes
  • 4 x 4.8mm mounting hole
  • 4 x M3 screw hole

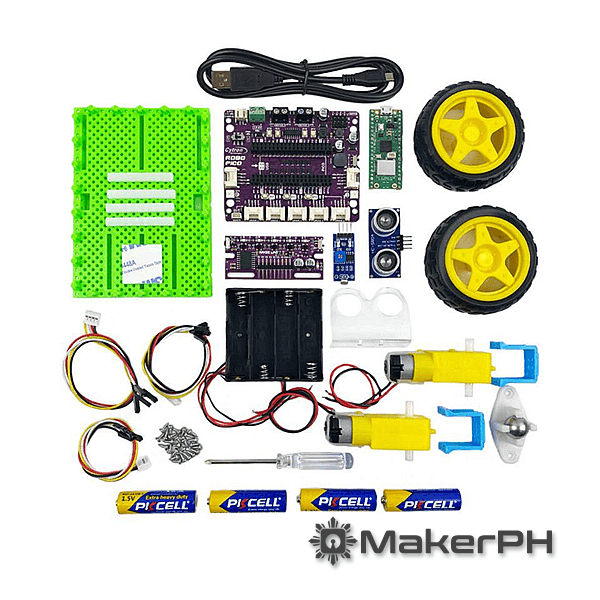

Packing List

BocoBot with Raspberry Pi Pico W included:

• 1 x Raspberry Pi Pico Wireless – Pre-soldered with Headers
• 1 x Robo Pico
  • 3 x Grove to Female Jumper Wires
  • 1 x Screwdriver
• 1 x Set of Robot Chassis
  • 2 x Robot Building Base (GREEN)
  • 2 x Motor Bracket (BLUE)
  • 25 x M2.2x6mm Self Tapping Screw for Plastic Base
  • 3 x M2.3x8mm Self Tapping Screw for Maker Line
  • 4 x Spacer
  • 2 x TT Motor with 15cm wires
  • 2 x Wheels
  • 1 x Steel Ball Castor
• 1 x Maker Line
• 1 x Ultrasonic Sensor Module
• 1 x Bracket for Ultrasonic Sensor Module
• 1 x Light Sensor Module
• 2 x TT Motor with Wheel
• 4 x AA Battery
• 1 x Battery Holder
• 1 x Castor
• 1 x USB Cable
• 1 x Double Sided Tape
