With the All Japan Robot Sumo Tournament (AJRST) opening the 500g category to international competitors in 2024, the race to build the ultimate mini-sumo robot has intensified. While many compact robot kits are designed for autonomous operation, converting them for Radio Control (RC) use has traditionally required additional hardware, complex wiring, and custom programming.

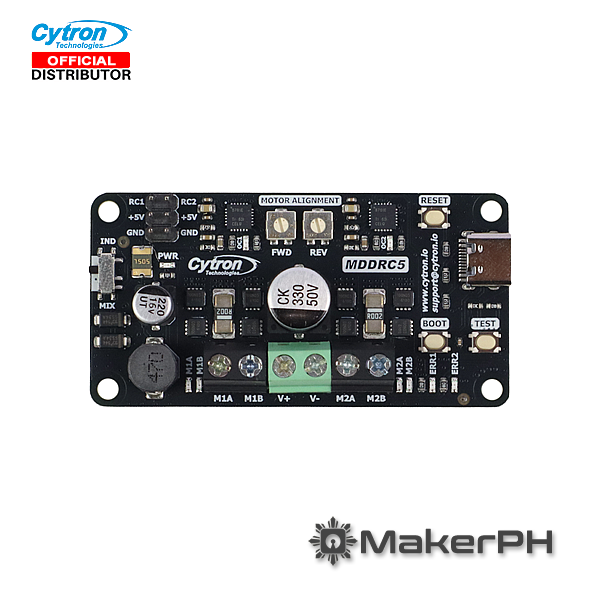

Inspired by the proven design of the MDDRC10, the MDDRC5 delivers the same ease of integration and reliable motor control in a significantly smaller size. Designed for applications that demand high-current performance within strict size constraints, the MDDRC5 is well suited for 500g RC sumo robots, compact mobile platforms, and other space-limited robotics projects.
Why Choose MDDRC5?
- Plug-and-Play Simplicity: Skip the messy breadboards and complex Arduino coding. Connect your RC receiver directly to the MDDRC5 and start driving in seconds. Perfect for getting your robot battle-ready fast.
- Compact Size: Ideal for compact competition robots. In the 500g category, every millimetre and gram counts. With a footprint of 69×35.5mm, the MDDRC5 is significantly more compact than the MDDRC10, freeing up critical space for extra weights to dominate the Dohyo.
- High-Current Performance: Don’t let the size fool you. With 5A continuous and a massive 20A peak current per channel, this driver is built to handle high-current demands, aggressive acceleration and sudden direction changes during intense head-to-head combat.
- Precision Control & Alignment: Unlike basic drivers, the MDDRC5 features a Motor Alignment Potentiometer. Fine-tune your motors’ alignment to ensure your robot drives dead-straight, giving you superior accuracy during a charge.
- Future-Proof for Pros: Start as a beginner with RC PWM, then grow into a pro. The USB-C port allows you to update firmware or upload custom code, transforming the board into a fully programmable controller as your skills evolve.
Key Features
- High-Current Performance
5A continuous and 20A peak current per channel for demanding motor loads and brief current surges. - Compact Size
Its compact 69 × 35.5 mm footprint is ideal for space-limited competition robots. - Motor Alignment
Fine-tune the forward and reverse motor balance using the onboard potentiometers. - Onboard Test Button
Quickly check motor operation and rotation direction without an R/C transmitter. - Easy Connection
Connect the R/C receiver, motors and battery directly to the clearly labelled connections. - USB-C Port
Update the supplied firmware or reprogram the onboard controller for advanced applications. - Dual Control Modes
Switch between Independent and Mixed modes using the onboard slide switch. - Wide Input Range
Supports a 7–30V DC input and commonly used 2S to 6S LiPo battery systems. - Status Monitoring
Monitor power, motor outputs and error conditions using the onboard LED indicators.

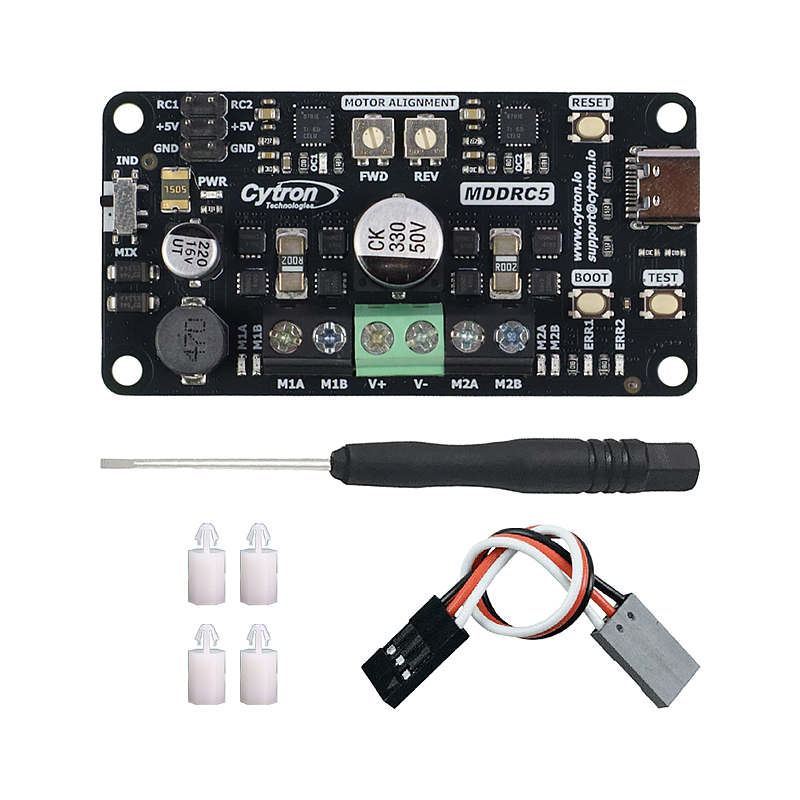

Packing list
- 1 x 5 Amp 7V-30V DC Motor Driver for R/C (2 Channels)
- 2 x 20cm 3-way connector extension wire
- 4 x 7mm Nylon PCB Spacer
- 1 x 2mm flat head screwdriver
