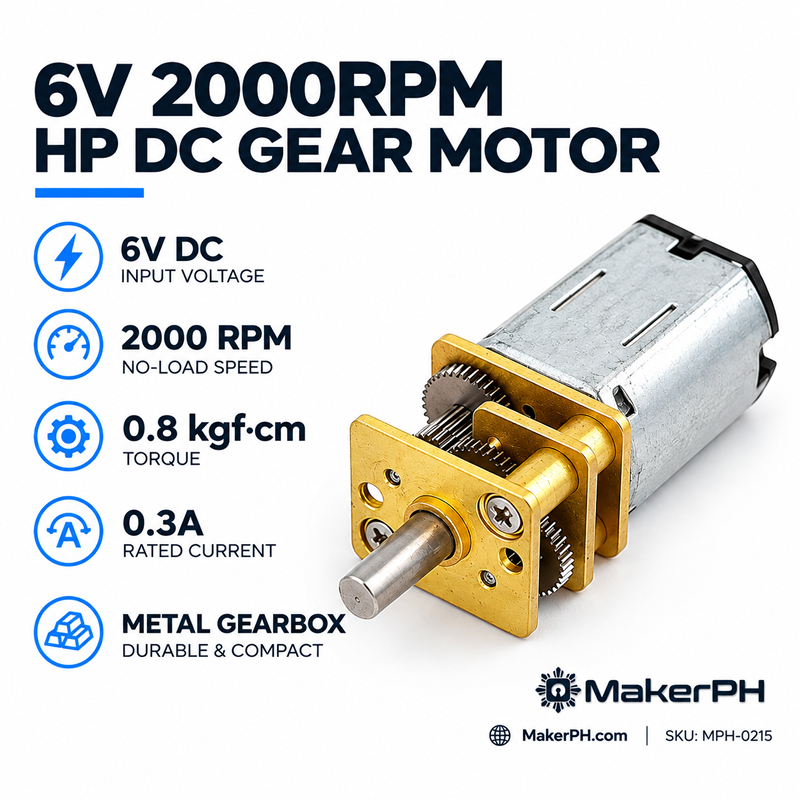

MakerPH Apex MGM-6HP 2000 RPM DC Micro Metal Gearmotor (ALF-16X Certified)
Meet the ultimate core of high-velocity robotics: the MakerPH Apex MGM-6HP 2000 RPM DC Micro Metal Gearmotor. Built for competitive precision and instant acceleration, this high-speed gearmotor is engineered specifically for fast line-following robots, aggressive mini sumo platforms, and high-performance custom robotics.
Featuring a custom-wound 6HP armature and an optimized internal metal gear ratio, the Apex Series motor is tuned to deliver explosive speed out of tight turns and consistent torque control under demanding track conditions.
Key Features
- Apex Velocity Tuning: Delivers a blistering 2000 RPM at 6V DC, optimized for maximum speed out of sharp corners and tight angles.
- Custom 6HP Architecture: Features a custom-wound armature paired with durable internal metal gearing for high power-to-weight performance.
- Wide Operating Range: Nominal 6VDC rating with factory-tested operation across 3V to 9V.
- Ultra-Compact Footprint: Micro 10mm x 12mm dimensions with a standard 3mm D-shaft for direct wheel and coupler compatibility.
- High Efficiency: Draws just 40mA under no-load conditions with a controlled 500mA stall current at 6V.
Technical Specifications
- Series: MakerPH Apex Series |
MPH-APX-MGM6HP-2000 - Rated Voltage: 6VDC (Operating Range: 3V – 9V)
- No-Load Speed: 2000 RPM @ 6V
- No-Load Current: 40mA
- Stall Current: 500mA @ 6V
- Gearbox Cross-Section: 10mm x 12mm
- Output Shaft: D-shaped | 3mm Diameter | 9mm Length
- Encoder: No
- Motor Weight: 10g
Performance & Voltage Notes
The Apex MGM-6HP is factory-tested for peak efficiency at 6VDC (~2000 RPM). Operating below 6V reduces top speed and current draw, while running above 6V (up to 9V) increases speed and torque output. Note that sustained operation above 6V may reduce overall motor operational lifespan.
📌 Certified Compatibility & Recommendation
This motor is the certified official replacement and performance upgrade motor for the MakerPH MPH-ALF-16X Carbon Advanced Line Follower Robot.
