ELECFREAKS Octopus Vibration Sensor

ELECFREAKS Octopus Vibration Sensor

Octopus Electronic Bricks, you can use them to build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog, and I2C/Uart interfaces. These breadboard-less firm connections are prepared to extensive modules like potentiometers, sensors, relays, servos…even buttons, just plug and play.

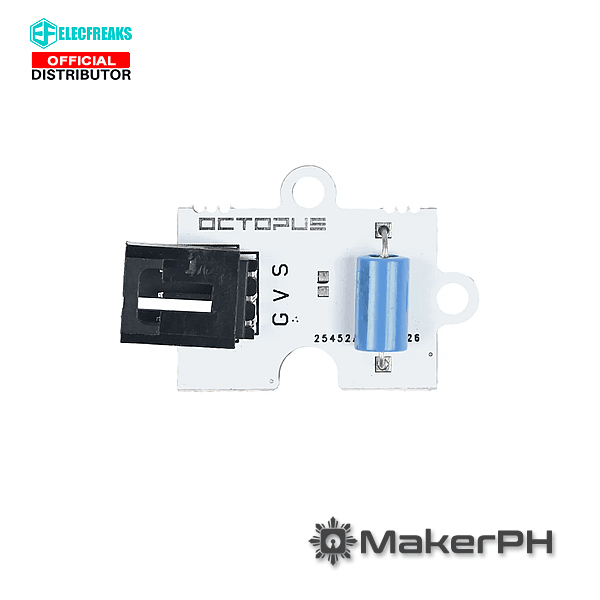

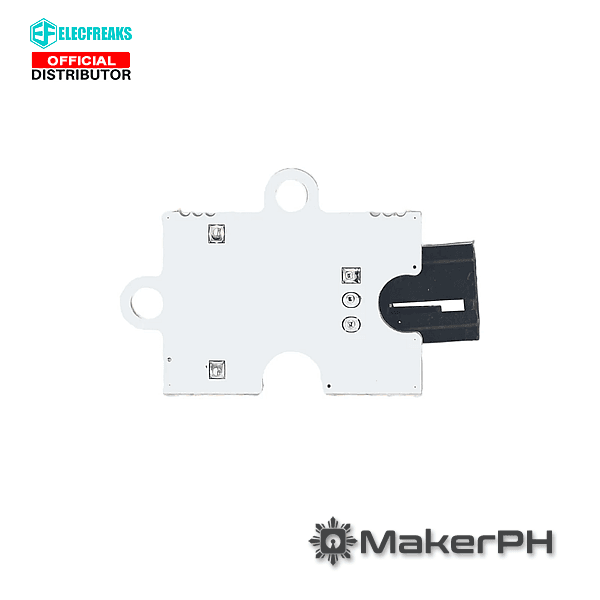

Vibration Sensor Brick is a module based on a vibration trigger switch. When in the stationary state, the indicator LED is OFF. When subjected to external vibration touch to achieve the appropriate vibration force, or move away from the speed of the appropriate (partial) effort, the conductive pin will produce an instant turn-on (ON) state. At that time, electrical characteristics changed. While if the external force disappears, electrical characteristics will restore the OFF state. Through Arduino board D13 port indicator LED on/ off, you can clearly see how the vibration sensor works. This module can be used in vibration testing, reporting theft alarms, smart car,s and so on.

ELECFREAKS Octopus Vibration Sensor Specifications

• Operating voltage: 5V
• Connecting Mode: G-GND, V-VCC, S for the detection of the signal pin (connected to D3)
• The power supply needs: 5V
• Pin Definition: V-VCC G-GND S-D3
• Simple drive circuit
• Able to achieve very interesting and an interactive work

Package list

• 1x OCTOPUS Vibration sensor Brick
• 1x Analog Sensor Cable
