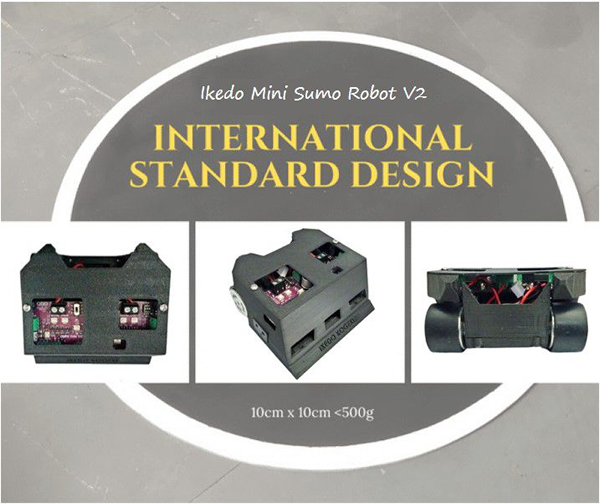

Ikedo Mini Sumo Robot V2 Starter Kit

Ikedo Mini Sumo Robot V2 Starter Kit

The iKedo Mini Sumo Robot V2 Starter Kit is an excellent entry-level robotics kit designed for beginners and enthusiasts looking to dive into the exciting world of mini sumo robot competitions. This kit provides everything you need to assemble and program your very own mini sumo robot, with easy-to-follow instructions and high-quality components.

Ikedo Mini Sumo Robot Key Features

• Complete Starter Kit: Includes all necessary parts such as the main control board, motors, wheels, sensors, and chassis.
• User-Friendly: Ideal for beginners with detailed assembly and programming guides.
• Powerful Performance: Equipped with robust motors and sensors for competitive sumo wrestling.
• Expandable: Compatible with additional sensors and modules to enhance functionality and performance.
• Educational: Perfect for learning robotics, electronics, and programming concepts in a fun and engaging way.

Specifications

• Size: 10cm x 10cm
• Weight: 150gram
• Chassis color: black
• Upgraded Chassis Design
• Chassis material: PLA (3D printed)
• Battery: 7.4V 450mAh LiPo rechargeable battery
• 5 x opponent sensors (Range: 50cm adjustable)
• 2 x edge sensor (underneath)
• 2 x 6V DC motors (600rpm, 0.065kg.cm)
• Arduino Nano/Uno compatible (Powered by ATmega328P)
• CH340C-based USB to serial converter
• Auto and manual control mode (RC transmitter and receiver sold separately).
• On-board start button and port for external start module (Not included).
• LED status indicator for power, motor, opponent sensors and start button.
• Programmable LED, 3-way DIP switch, potentiometer, and piezo buzzer.
• Port for RC servo.
• Arduino IDE compatible

What’s Included

• 1 x Maker Mini Sumo Controller
• 5 x Maker Object Sensor (opponent)
• 2 x Maker Reflect Sensor (edge)
• 2 x 600RPM 6V DC Micro Metal Gearmotor
• 2 x Sumozade Silicone Wheel Set 30 x 23mm
• 1 x 7.4V 450mAh LiPo Battery
• 1 x Mini Sumo Robot Chassis (Top Cover)
• 1 x Mini Sumo Robot Chassis (Main)
• 1 x Mini Sumo Robot Chassis (Motor Bracket)
• 1 x JST LiPo Battery Wire Extension
• 1 x 2561 3Ways Connector Extension Wire
• 4 x M3x6 Self-Tapping Screw (Black)
• 6 x M2.5×20 Bolt
• 1 x Philip Screwdriver

Applications

• Mini sumo robot competitions
• Educational robotics projects
• STEM learning and teaching
• Robotics hobby projects
