Industrial-Grade Reliability, Ready to Deploy
The iMD16 16A Industrial DC Motor Driver is engineered for engineers and machine builders who require dependable motor control without the overhead of complex custom drive electronics. Its rugged, compact metal housing not only shields your components from dust and accidental contact but also acts as a highly effective passive heatsink, allowing for 16A continuous current delivery without the need for active cooling fans.

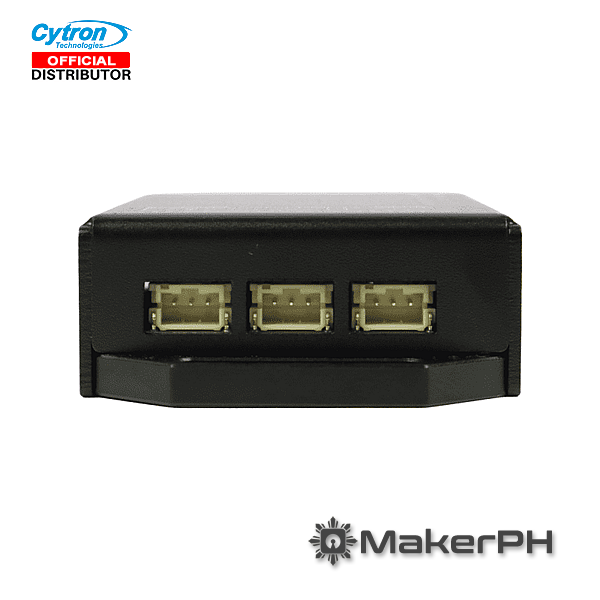

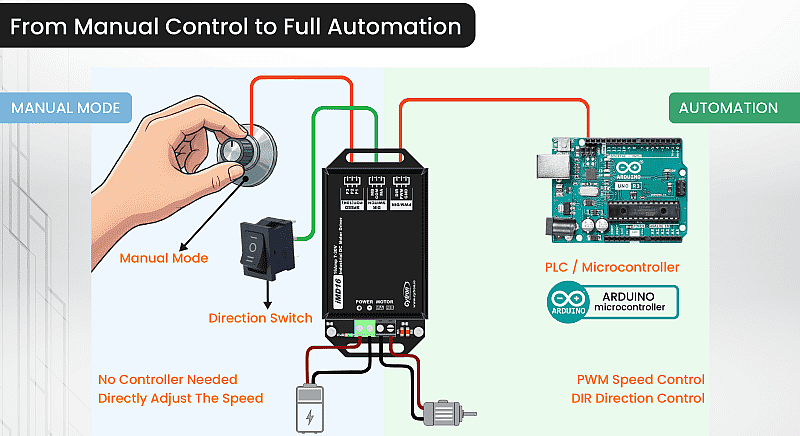

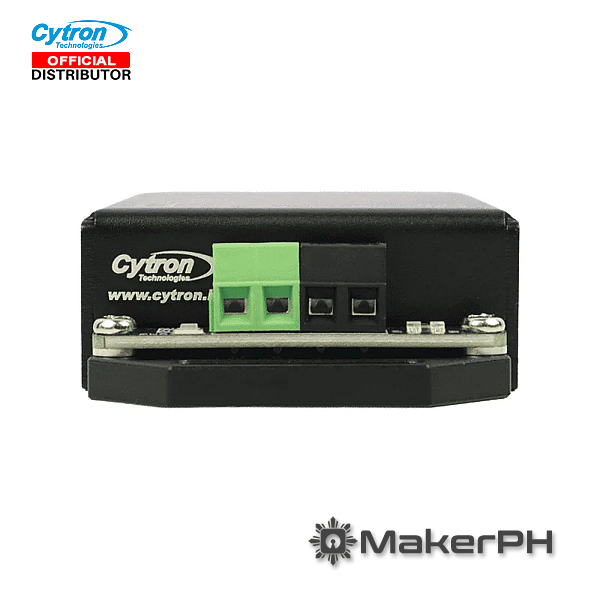

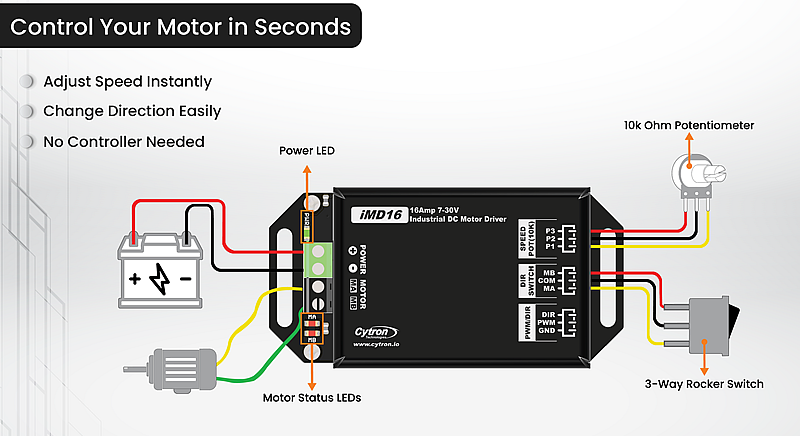

Designed for flexibility, the iMD16 serves two distinct control modes: use the standalone manual mode with the included potentiometer and rocker switch for immediate speed and direction control, or interface directly with a microcontroller or PLC using standard PWM and DIR signals. With its wide 3V–30V logic input compatibility, it integrates seamlessly into 24V industrial control environments without the need for level shifters or extra circuitry.
Key Features:

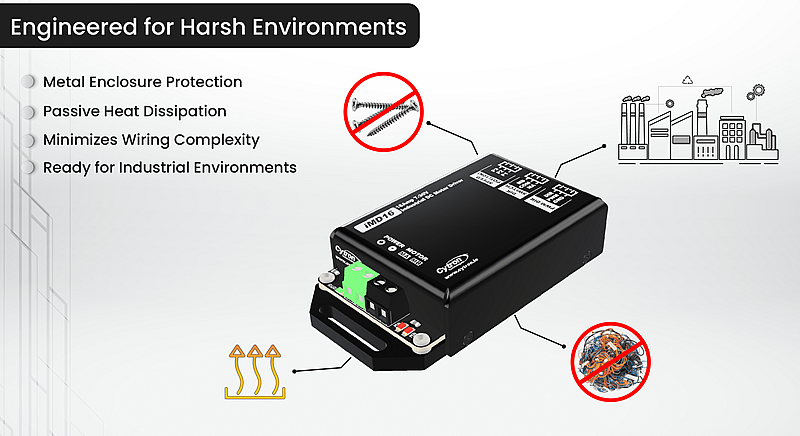

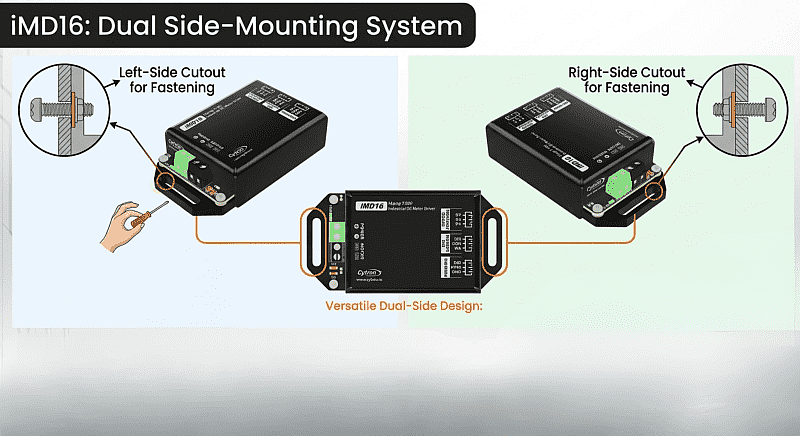

- Industrial-Ready Design: Fanless, rugged metal enclosure protects electronics and simplifies mounting in cabinets and machine frames.
- High Power Capacity: Drives brushed DC motors with up to 16A continuous current, with a 30A peak rating (for <10s) to handle high-torque startups.
- Flexible Control Options: Supports both manual control (potentiometer + rocker switch) and external automation via PWM/DIR inputs.
- PLC-Friendly Logic: Wide 3–30V logic input range allows direct connection to industrial PLC digital outputs.
- Comprehensive Protection & Feedback: Features integrated status LEDs for real-time monitoring and advanced braking functionality.
Technical Specifications:
- Input Voltage: 7V – 30V DC
- Continuous Current: 16A
- Peak Current: 30A (for <10 seconds)
- PWM Frequency (External): DC – 20kHz
- Logic Input Voltage: 3V–30V (High), 0–0.5V (Low)
- Cooling: Fanless (Passive metal heatsink housing)

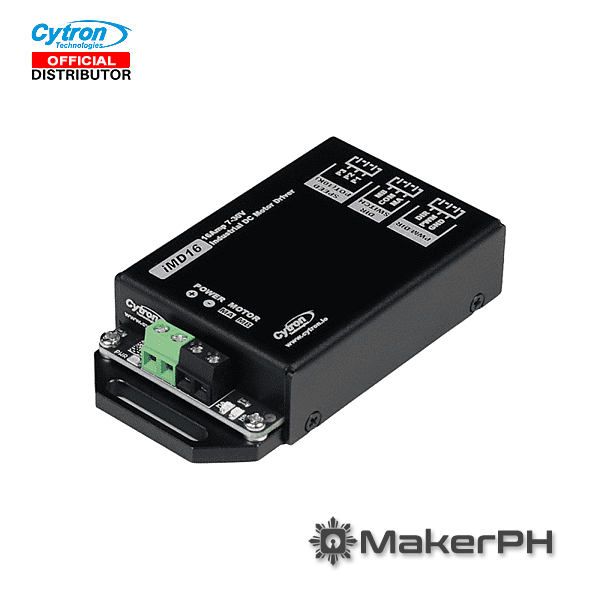

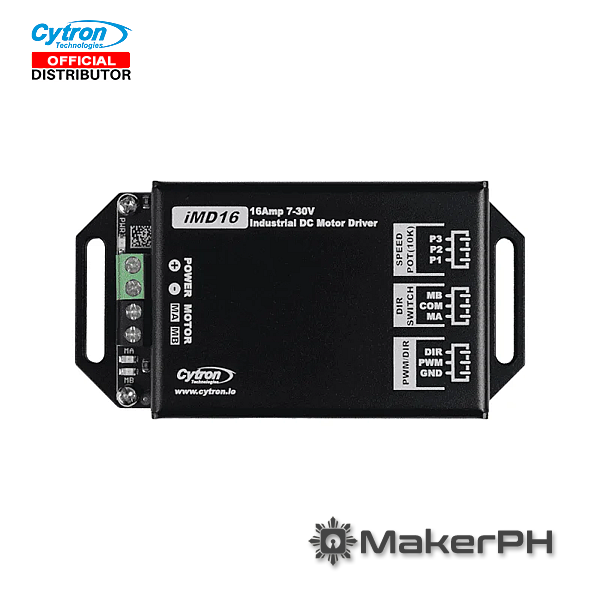

- Interface: Screw terminals (power/motor), JST-PH (control signals)
What’s Included:
- 1x iMD16 Motor Driver Module
- 1x 10kΩ Potentiometer (pre-wired connector)
- 1x 3-way Rocker Switch (pre-wired connector)
- 1x PWM/DIR Input Cable (20cm)
- 1x Mini Phillips Screwdriver
