Overview

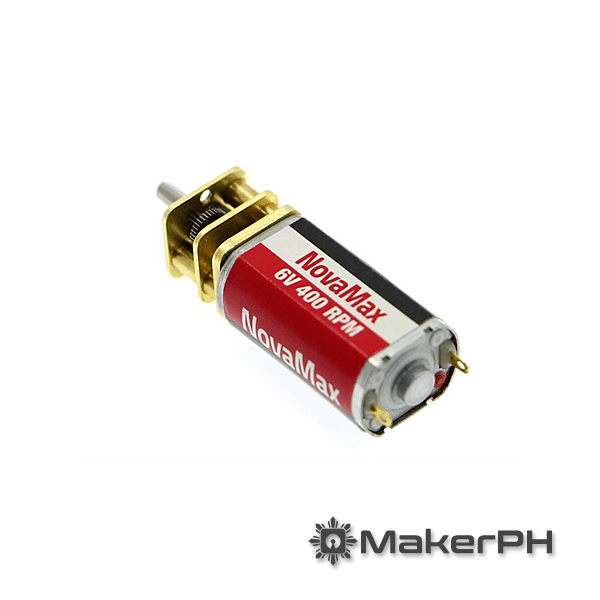

The NovaMax DC Motors are renowned for their exceptional performance in Mini Sumo Robot competitions. Designed specifically for high power and efficiency, these motors have become a favorite in 2019 for competitive robotics.
Key Features
- High Power and Torque: Capable of operating at up to 12 volts to achieve greater torque and speed, with a stopping torque of 6.5 kg/cm.
- Compact and Lightweight: With a diameter of 16mm and a weight of just 24g, these motors are ideal for mini sumo robots and other projects requiring high torque in a small form factor.
- High Performance: The NovaMax series offers superior acceleration and power compared to standard DC motors, making it an unrivaled choice for mini sumo robots.
Technical Specifications
- Operating Voltage: 6 to 16 Volts (Nominal: 6V, Max: 16V)
- Speed: 400 RPM
- No-Stall Current: 120mA
- Operating Current: 190mA
- Stopping Current: 3.65A
- Rated Load Torque: 4.4 kg/cm
- Stopping Torque: 6.5 kg/cm
- Motor Diameter: 16mm
- Shaft: 3mm D Shaft Center Outlet
- Shaft Length: 8mm
- Length: 48mm (compliant with mini sumo robot competition rules)
- Weight: 24g
Comparison with NovaMax
The NovaMax series features a larger motor with enhanced performance, setting a new standard in Mini Sumo Robot competitions.
Powerful motor for a mini sumo robot.
