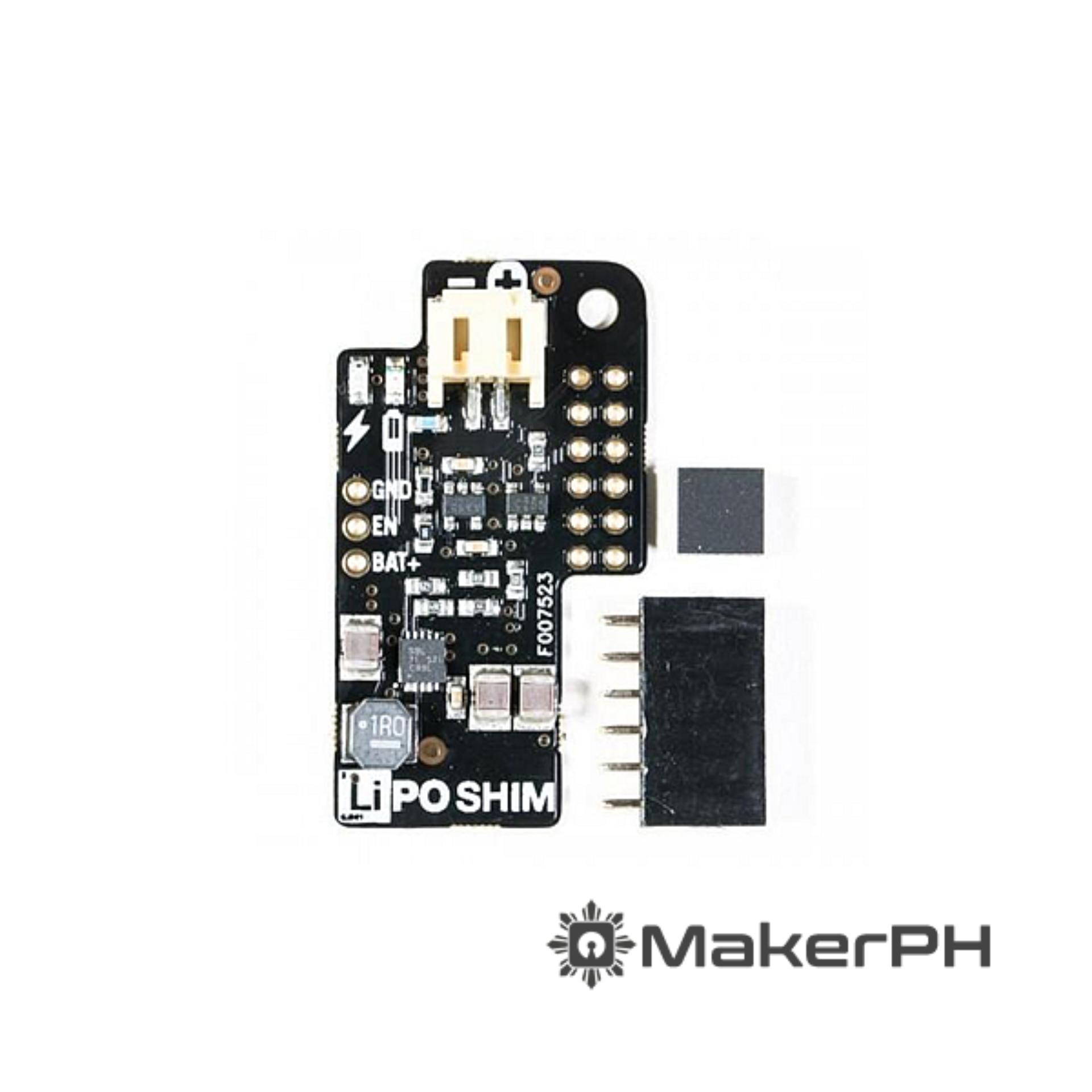

Pimoroni – LiPo SHIM

1,188.00 1,149.00

0.8mm thick PCB
Shaped to sit as low as possibleontheRaspberry Pi
2-pole JST connector ideal for most LiPo/LiIon batteries
Power and low battery LED indicators
Supplies up to 1.5A continuous current (15uAquiescent current)
Low battery warning at 3.4V (asserts GPIO #4 low)
Automatic shutdown at 3.0V to protect your battery
VBAT+, GND, and EN pins available to break out
2×6 0.1″ female header (optional, for non permanent installation)
Includes rubber foot to space LiPo SHIM away from your Raspberry Pi
LiPo SHIM pinout
Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
Requires soldering

Only 1 left in stock

SKU: MPH-0016 Categories: ,


Additional information

Weight 0.06 kg
Dimensions 4.0 × 2.2 × 1.0 cm
