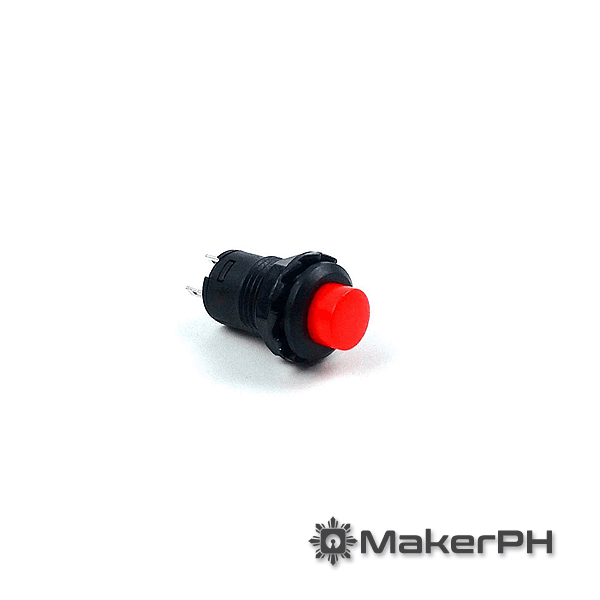

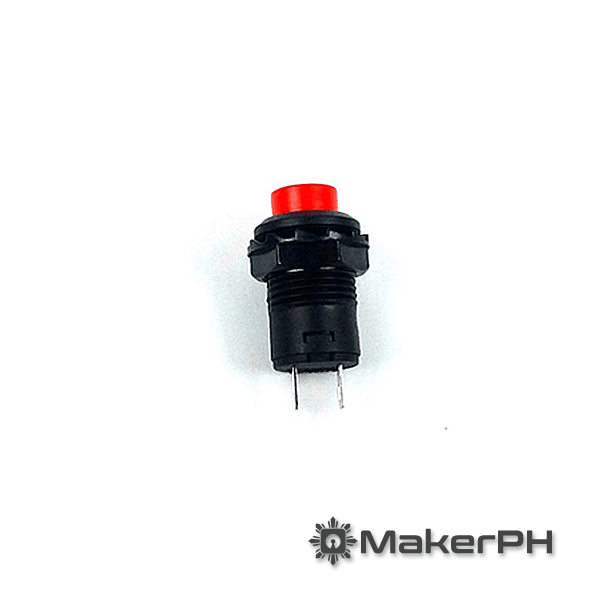

Round Panel Mount Latch Push Button (Red)

Reliable Self-Locking Panel Mount Switch

The Round Panel Mount Latch Push Button is a crisp, tactile SPST (Single Pole Single Throw) switch designed for seamless integration into custom enclosures, control boxes, and dashboard layouts. Featuring a durable self-locking (latching) mechanism, this switch stays securely in the ON position when pressed once, and releases back to the OFF position when pressed again.

Its clean round bevel and integrated mounting thread allow for a simple press-fit or screw-tightened install on panels up to several millimeters thick, offering a professional finish for hobbyist and commercial projects alike.

Key Features:

• Latching Action: Maintained ON/OFF operation (Push-to-Lock, Push-to-Release)—not a momentary switch.
• Panel-Mount Ready: Fits standard 12mm threaded mounting holes with an elegant, flush-fitting outer ring.
• High Visibility: Bright red button head provides immediate visual identification on crowded control surfaces.
• Simple Wiring: Clean 2-pin solder terminal design for direct circuit soldering or quick-connect wire extensions.

Technical Specifications:

• Switch Operation Type: Latching / Self-Locking / Maintained
• Circuit Configuration: SPST, Normally Open (NO)
• Mounting Hole Diameter: 12mm
• Contact Rating: 3A @ 125VAC / 1.5A @ 250VAC
• Terminal Count: 2-Pin
• Material: High-Quality Plastic Body and Cap
