URC10 Sumo Robot Controller

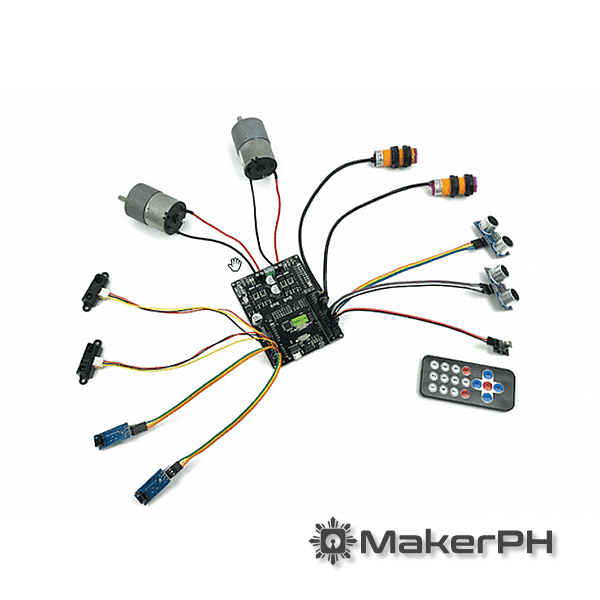

Building a sumo robot has never been easier with the URC10 Sumo Robot Controller. This all-in-one controller combines the power of Arduino, a 10A motor driver, and a sensors interface to provide a versatile platform for your sumo robot projects.

URC10 Key Features

  • Arduino Uno Compatible: The URC10 is equipped with the Atmega328P microcontroller, the same one used in the official Arduino Uno board. Develop your programs using the Arduino IDE by selecting Arduino/Genuino Uno.
  • Dual 10A Motor Driver: With a built-in dual 10A motor driver, the URC10 can drive motors suitable for up to 3kg sumo robots. Ideal for the 3kg Sumo Robot category.
  • Motor Control: Enjoy bi-directional control for two brushed DC motors. The controller supports a motor voltage range of DC8V to 25V, with a maximum motor current of 10A continuous and 30A peak per channel.
  • PWM Operation: Compatible with sign-magnitude and locked-antiphase PWM operation, with a PWM frequency up to 20kHz.
  • Onboard Regulators: Includes onboard 1A (maximum) 5V voltage regulator and 500mA (maximum) 3.3V voltage regulator.

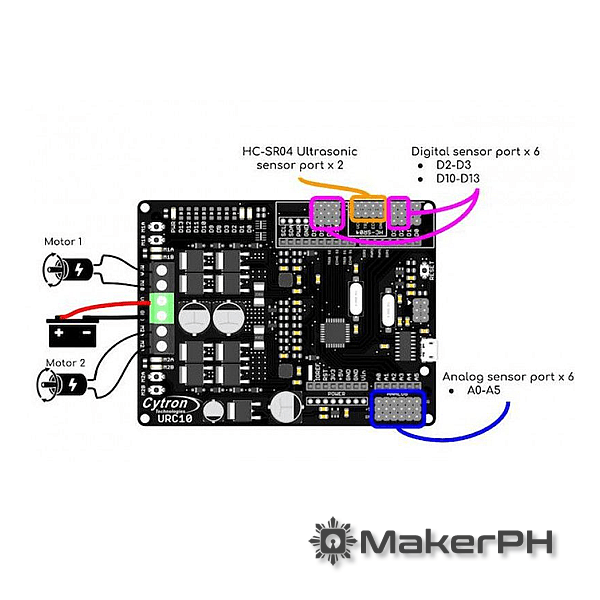

  • Pins’ Assignment: Clearly defined pins for motors, ultrasonic sensors, digital sensors, and analog sensors, providing flexibility in your project.
  • USB Micro-B & CH340: USB Micro-B and CH340 USB-Serial chip are used for program uploading.

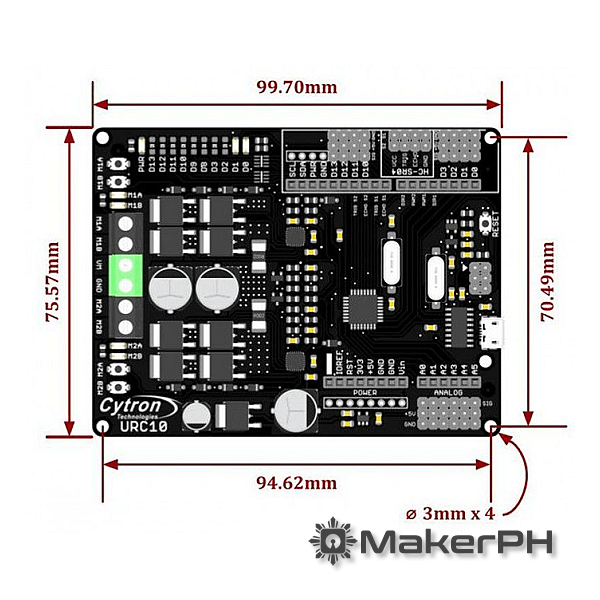

  • Dimensions: Compact size with dimensions of 75.57cm x 99.7cm.

Please Note:

The URC10 is designed for up to 3kg sumo robots.
No reverse polarity protection.

Dimensions 75.57 × 99.7 cm
Microprocessor

Atmega328

Operating frequency

16 Mhz

Motor Voltage

8-25V DC

Motor Current

10A Continues, 30A Peak per Channel

PWM Frequency

Upto 20kHz
